BIS 105 UL-YInsulating tubing-40 °C to +105 °CBIS 105 UL-Y
BIS 105 UL-Y · Flexible PVC
Ø 1.0 – 25.0 mm
Very flexibleSelf-extinguishing17 sizes
Details & inquiry
Products
Insulating tubing
Our insulating tubing range – filter by technical properties, pick a size and add the article to your inquiry basket.
22 articles
BIS 105 UL-YInsulating tubing-40 °C to +105 °C
BIS PVC GEWInsulating tubing-20 °C to +65 °C
FEP ISOInsulating tubing-67 °C to +205 °CFEP ISO
FEP ISO · FEP
Ø 0.8 – 20.0 mm
High flex-cycle resistanceHigh chemical resistance18 sizes
Details & inquiry
GSSP Spiral-SchutzschlauchInsulating tubing-50 °C to +80 °CGSSP - hose guard made of High Density Polyethylene (GSSP Spiral-Schutzschlauch)
PE-HD
Ø 9.0 – 155.0 mm
Abrasion-resistantFlexible13 sizes
Details & inquiry
BIS 105Insulating tubing-20 °C to 105 °CBIS 105
BIS 105 · Flexible PVC
Ø 0.5 – 36.0 mm
Self-extinguishingApproval: DIN 40621 B28 sizes
Details & inquiry

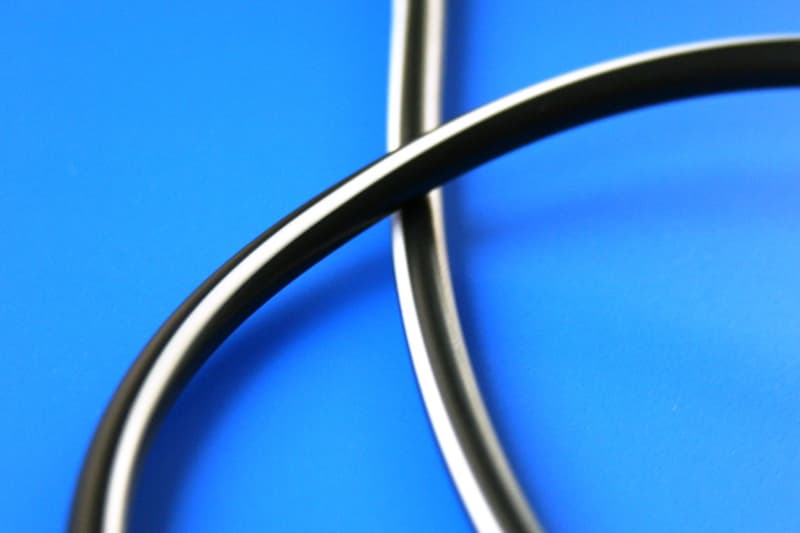

BIS 120 HTInsulating tubing-40 °C to 105 °CBIS 120 HT
BIS 120 HT · Flexible PVC
Ø 2.1 – 30.1 mm
Self-extinguishingTemperature-resistant24 sizes
Details & inquiry
BIS 85Insulating tubing-20 °C to 85 °C
BIS 85 KInsulating tubing-40 °C to 85 °CBIS 85 K
BIS 85 K · Flexible PVC
Ø 2.0 – 30.0 mm
Cold-resistantSelf-extinguishing24 sizes
Details & inquiry
BIS LDPEInsulating tubing-30 °C to 75 °C
BIS PA12Insulating tubing-40 °C to 90 °C
BIS PE ULInsulating tubing-40 °C to 125 °C
BIS PURInsulating tubing-40 °C to 125 °CBIS PUR
BIS PUR · PUR
Ø 1.6 – 30.1 mm
High chemical resistanceHigh temperature resistance17 sizes
Details & inquiry

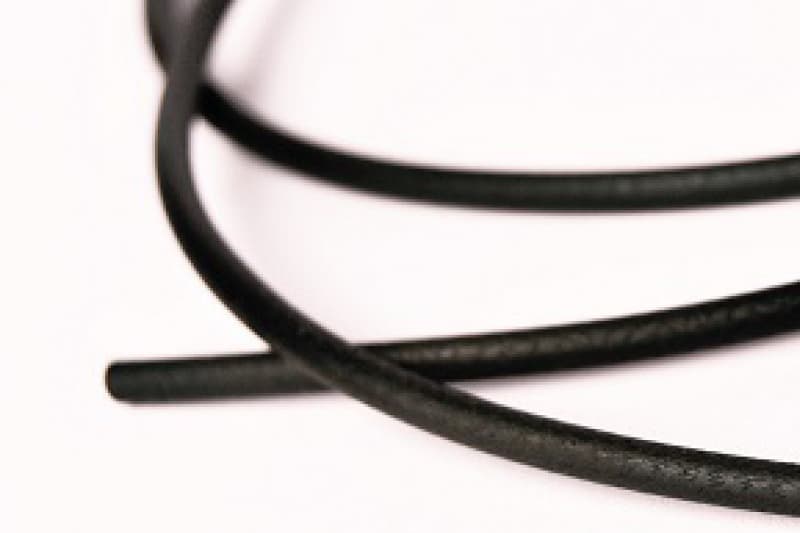

BIS TPESInsulating tubing-40 °C to 135 °C
BIS VITInsulating tubing-20 °C to 200 °CBIS VIT
BIS VIT · FKM
Ø 1.0 – 30.0 mm
High chemical resistanceHigh temperature resistance26 sizes
Details & inquiry
PFA ISO AWGInsulating tubing-60 °C to 240 °CPFA ISO AWG
PFA ISO AWG · PFA
Ø 0.81 – 33.37 mm
High flex-cycle resistanceHigh chemical resistance15 sizes
Details & inquiry
PFA ISOInsulating tubing-60 °C to 240 °CPFA ISO
PFA ISO · PFA
Ø 0.8 – 20.0 mm
High flex-cycle resistanceHigh chemical resistance19 sizes
Details & inquiry
PTFE AWGInsulating tubing-67 °C to 260 °CPTFE AWG
PTFE AWG · PTFE
Ø 0.2 – 8.4 mm
High chemical resistanceHigh temperature resistance29 sizes
Details & inquiry
PTFE ISOInsulating tubing-67 °C to 260 °CPTFE ISO
PTFE ISO · PTFE
Ø 1.0 – 30.0 mm
High chemical resistanceHigh temperature resistance31 sizes
Details & inquiry
BIS 105 UL AWGInsulating tubing-35 °C to 105 °CBIS 105 UL AWG
BIS 105 UL AWG · Flexible PVC
Ø 0.79 – 19.1 mm
Self-extinguishingUL-approved27 sizes
Details & inquiry
BIS 75Insulating tubing-20 °C to 65 °C
BIS SI ULInsulating tubing-50 °C to 200 °CBIS SI UL - Silicone tubing UL 224
BIS SI UL · VMQ (silicone)
Ø 0.8 – 18.0 mm
Halogen-freeVery flexible19 sizes
Details & inquiry
BIS SIInsulating tubing-60 °C to 200 °CBIS SI
BIS SI · VMQ (silicone)
Ø 0.3 – 200.0 mm
Halogen-freeHigh temperature resistance20 sizes
Details & inquiry
Insulating tubing made of polyamide, polyethylene, polyurethane, PTFE, PVC, silicone and Viton®
BIT offers a great variety of protective sleeves, insulating and spaghetti tubing made from different types of plastic and synthetic material like polyamide, polyethylene, polyurethane, PTFE, PVC, silicone and Viton ®. What type is right for a specific application depends in no small part on properties such as material flexibility, operating temperature range, and resistance to different agents and media. PVC and silicone tubing are also available with UL-224 certification.
You would like a different color, custom size, or a related specialty item? Don’t be shy! Special orders won’t upset us. Contact us! We are more than happy to assist you. Our dedicated team of professionals will help you find the optimal match for your application.
Insulating tubing from BIT Bierther GmbH
At BIT Bierther GmbH, we understand the importance of high-quality insulating tubing for various industrial applications. Our insulating tubing products are designed to provide optimal performance and durability, ensuring that your equipment and machinery are protected from harsh environmental conditions and electrical interference.
We offer a wide range of insulating tubing products, including heat shrink tubing, silicone tubing, and fiberglass tubing. Our products are available in various sizes and materials to meet your specific application requirements. We also offer customization services to ensure that our products fit your unique needs.
Our insulating tubing products are manufactured using the highest quality materials and are rigorously tested to ensure they meet the industry’s highest standards. We are committed to providing our customers with reliable, long-lasting products that exceed their expectations.
At BIT Bierther GmbH, we pride ourselves on our exceptional customer service. Our team of experts is always available to answer your questions and help you find the right insulating tubing solution for your application. Contact us today to learn more about our insulating tubing products and services.
What is insulating tubing and what is it used for?
Insulating tubing is a sleeve made of insulating plastic, which is used to protect cables, wires or other components from temperature extremes, moisture, abrasion or other external factors.
What materials are used to make insulating tubing?
Insulating tubing can be made from various materials, including silicone, PVC, PTFE or PUR. The choice of material depends on the specific requirements of the application, including temperature resistance and chemical resistance.
PVC insulating tubing
The BIS 85 and BIS 105 PVC insulating tubing products are cost-effective electrical insulating tubing used in the electrical industry, cable assembly, equipment manufacturing and vehicle construction. The BIS 105 UL PVC sleeving is approved to UL 224 and is supplied in sizes based on AWG (American Wire Gauge).
BIS PUR polyurethane insulating tubing is highly flexible and offers excellent protection at operating temperatures of up to +125°C. It is frequently used in industrial applications.
The halogen-free BIS SI silicone insulating tubing is ideally suited to demanding applications thanks to its excellent insulating properties and high temperature resistance up to +200°C. The flexible BIS SI UL silicone tubing is also approved to UL 224. Silicone foam tubing, which has particularly low thermal conductivity, is also available.

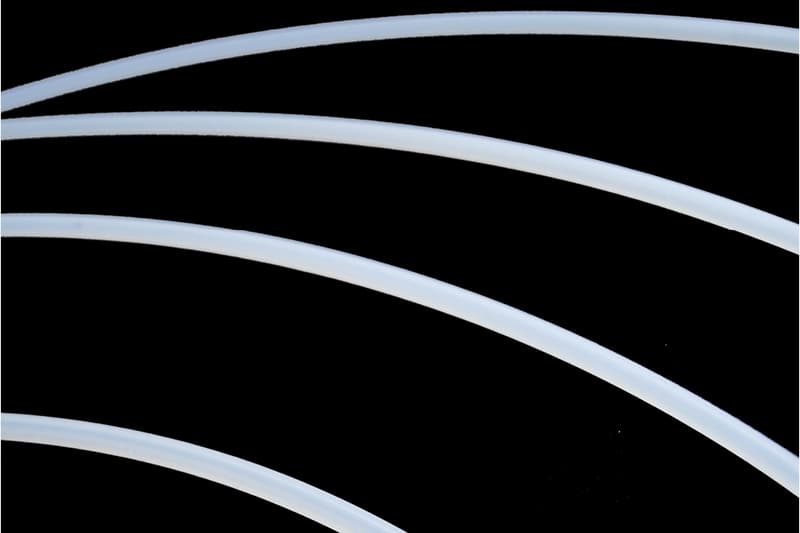

PTFE insulating tubing
PTFE insulating tubing is extruded from high-quality polytetrafluoroethylene. It is particularly resistant to high temperatures of up to +260°C and corrosive media.
What are the benefits of using insulating tubing?
Insulating tubing offers a wide range of benefits, including:
- Electrical protection: Insulating tubing protects against short circuits and electrical faults.
- Heat and cold protection: Insulating tubing helps to protect wires and cables from extreme temperatures.
- Moisture resistance: Insulating tubing prevents moisture from penetrating, thereby extending the service life of electrical components.
- Chemical resistance: Depending on the material, insulating tubing offers protection against chemicals and solvents.
In which industries is insulating tubing used?
Insulating tubing is used in various sectors, including electrical engineering, the automotive industry, the aviation industry, the food industry and the manufacture of medical devices. It is highly versatile and offers protection in a wide range of environments.
How do I choose the right insulating tubing for my needs?
Choosing the right insulating tubing depends on various factors, including temperature requirements, chemical resistance, diameter and the required insulation thickness. It is important to take the specific requirements of your application into account. Please get in touch – we’d be happy to advise you.
Can insulating tubing be manufactured to specification?
Yes, in many cases, insulating tubing can be manufactured to the customer’s specifications. This means that you have the option of customising insulating tubing to meet your specific requirements. This can cover various aspects, such as choice of material, diameter, wall thickness, tolerances, colour and length.
If you require further information or bespoke solutions, please do not hesitate to contact us. We would be happy to assist you with your projects.
Is there any UL-approved insulating tubing?
Yes, there are insulating tubing products that are approved by Underwriters Laboratories (UL).
UL-approved insulating tubing is often used in applications where electrical safety and fire protection are important, such as in the electrical industry, the automotive industry and in domestic appliances.
BIT Bierther GmbH UL File – E196690
Guides & topics
Insulating tubing: all types at a glance
| Type | Description | Material | Properties | Temperature range | Dimensions |
|---|---|---|---|---|---|
| BIS 105 UL-Y | Soft PVC insulation hose with UL approval | Soft PVC | highly flexible, self-extinguishing, UL-certified | -40 °C to +105 °C | Ø 1.0 – 25.0 mm |
| BIS PVC GEW | Three-layer PVC hose with polyester thread insert, CE N° 10/2011. | Soft PVC | elastic | -20 °C to +65 °C | – |
| FEP ISO | The FEP ISO is an insulating tubing made of fluoroethylene propylene with a temperature resistance of up to +205°C. | FEP | high bending fatigue strength, high chemical resistance, high temperature resistance, non-flammable | -67 °C to +205 °C | Ø 0.8 – 20.0 mm |
| GSSP Spiral-Schutzschlauch | Spiral protective hose for the protection of hydraulic hoses, pneumatic hoses and other applications. | PE-HD | abrasion resistant, flexible, for post-assembly application, spiral-wrap sleeve | -50 °C to +80 °C | Ø 9.0 – 155.0 mm |
| BIS 105 | Soft PVC insulating sleeve | Soft PVC | self-extinguishing | -20 °C to 105 °C | Ø 0.5 – 36.0 mm |
| BIS 120 HT | Soft PVC marking sleeve | Soft PVC | self-extinguishing, temperature-resistant | -40 °C to 105 °C | Ø 2.1 – 30.1 mm |
| BIS 85 | Soft PVC insulating sleeve | Soft PVC | flexible, self-extinguishing | -20 °C to 85 °C | Ø 0.5 – 36.0 mm |
| BIS 85 K | Cold-stabilized PVC insulating sleeve | Soft PVC | cold-resistant, self-extinguishing | -40 °C to 85 °C | Ø 2.0 – 30.0 mm |
| BIS LDPE | LD-PE sleeve | LD-PE | flexible | -30 °C to 75 °C | Ø 2.0 – 14.0 mm |
| BIS PA12 | Polyamide (PA12) sleeve | PA | abrasion resistant | -40 °C to 90 °C | Ø 2.0 – 18.0 mm |
| BIS PE UL | UL-approved polyethylene sleeve | PE | flame-retardant, halogen-free, practically non-flammable, UL-certified | -40 °C to 125 °C | Ø 0.9 – 15.6 mm |
| BIS PUR | Polyurethane sleeve | PUR | high chemical resistance, high temperature resistance, highly flexible | -40 °C to 125 °C | Ø 1.6 – 30.1 mm |
| BIS TPES | Santoprene sleeve | TPV | elastic, high chemical resistance | -40 °C to 135 °C | Ø 1.6 – 30.1 mm |
| BIS VIT | Viton®* fluoroelastomer insulating tube | FKM | high chemical resistance, high temperature resistance, highly flexible | -20 °C to 200 °C | Ø 1.0 – 30.0 mm |
| PFA ISO AWG | PFA insulating tubing | PFA | high bending fatigue strength, high chemical resistance, high temperature resistance, non-flammable | -60 °C to 240 °C | Ø 0.81 – 33.37 mm |
| PFA ISO | PFA insulating tubing | PFA | high bending fatigue strength, high chemical resistance, high temperature resistance, non-flammable, UV-resistant | -60 °C to 240 °C | Ø 0.8 – 20.0 mm |
| PTFE AWG | PTFE insulating tube | PTFE | high chemical resistance, high temperature resistance, non-flammable, UV-resistant | -67 °C to 260 °C | Ø 0.2 – 8.4 mm |
| PTFE ISO | PTFE insulating tube | PTFE | high chemical resistance, high temperature resistance, non-flammable, UV-resistant | -67 °C to 260 °C | Ø 1.0 – 30.0 mm |
| BIS 105 UL AWG | UL-approved soft PVC sleeve | Soft PVC | self-extinguishing, UL-certified | -35 °C to 105 °C | Ø 0.79 – 19.1 mm |
| BIS 75 | Transparent tubing made of Soft PVC | Soft PVC | flexible | -20 °C to 65 °C | Ø 2.0 – 30.0 mm |
| BIS SI UL | UL-approved silicone tubing | VMQ | halogen-free, highly flexible, UL-certified | -50 °C to 200 °C | Ø 0.8 – 18.0 mm |
| BIS SI | Silicone sleeve | VMQ | halogen-free, high temperature resistance, highly flexible | -60 °C to 200 °C | Ø 0.3 – 200.0 mm |
Looking for a specific version?
Other dimensions, colours or custom designs – talk to us, we will be happy to advise you.
