Expandable braided sleeves
Our expandable braided sleeves range – filter by technical properties, pick a size and add the article to your inquiry basket.
9 articles
BIS GE ARAMIDExpandable braided sleeves-70 °C to +180 °C

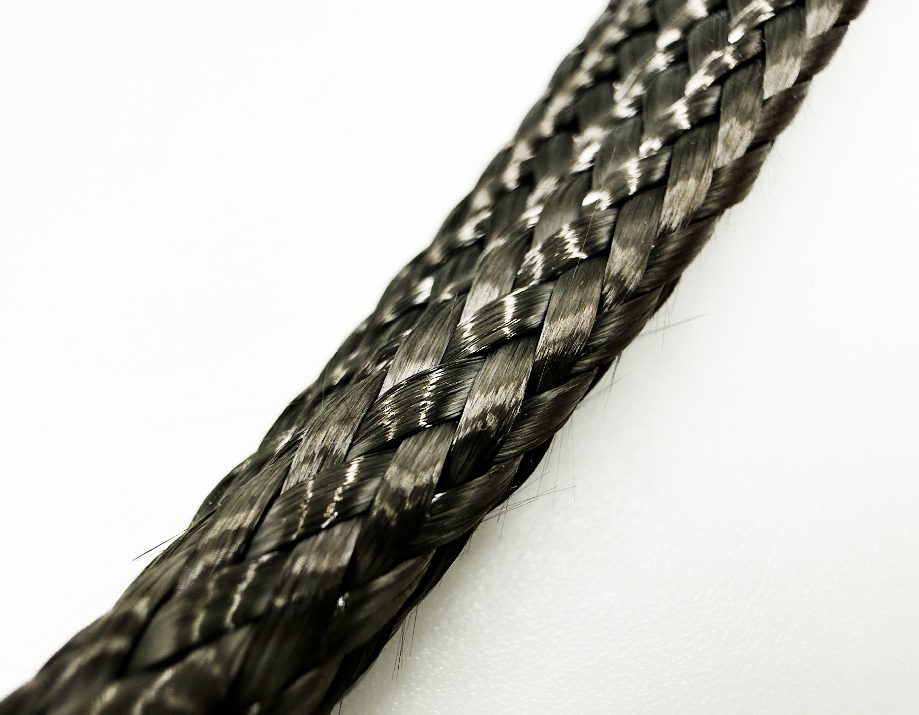

BIS GE CARBONExpandable braided sleeves-269 °C to +650 °CBIS GE CARBON
BIS GE CARBON · Carbon fibre
Ø 1.0 – 65.0 mm
High temperature resistance18 sizes
Details & inquiry
BIS GE PA/CU EMVExpandable braided sleeves-40 °C to +180 °C
BIS GE PA/EMVExpandable braided sleeves-40 °C to 160 °CBIS GE PA/EMV
BIS GE PA/EMV · PA 6.6
Ø 1.0 – 115.0 mm
Halogen-freeHigh temperature resistance13 sizes
Details & inquiry
BIS GE PETExpandable braided sleeves-40 °C to 150 °C
BIS GE PPExpandable braided sleeves-30 °C to 105 °C
BIS GE PAExpandable braided sleeves-40 °C to 180 °C
BIS WRAP PETExpandable braided sleeves-55 °C to 150 °C
BIS GE CUExpandable braided sleeves-65 °C to +232 °CBIS GE CU
Tinned copper
Ø 1.59 – 57.15 mm
Abrasion-resistantHigh temperature resistance19 sizes
Details & inquiry
Expandable braided sleeves made of polyamide, polypropylene or polyester
Expandable braided sleeves supplied by BIT come in polyamide, polypropylene and polyester. They provide outstanding mechanical protection for cables, wires, mains, tubes and pipes. As such, they are ideally suited for bundling purposes.
You would like a different color, custom size, or a related specialty item? Don’t be shy! Special orders won’t upset us. Contact us! We are more than happy to assist you. Our dedicated team of professionals will help you find the optimal match for your application.
Expandable braided sleeves from BIT Bierther GmbH
Looking for high-quality expandable braided sleeves? Look no further than BIT Bierther GmbH! Our expandable braided sleeves are designed to protect cables and wires from abrasion, mechanical stress, and other types of damage. With a wide range of sizes, colors, and materials to choose from, we have the perfect expandable braided sleeve for your needs.
Our expandable braided sleeves are made from durable, high-performance materials such as polyester, nylon, and polypropylene. They are designed to be flexible, lightweight, and easy to install, making them ideal for a variety of applications in the automotive, aerospace, electronics, and other industries.
At BIT Bierther GmbH, we pride ourselves on our commitment to quality and customer satisfaction. We use only the highest-quality materials to ensure that our expandable braided sleeves meet the highest standards of performance and durability. Whether you need a custom size or color, or simply want to order from our extensive selection of standard products, we’re here to help.
So why wait? With BIT GmbH, you can be sure you’re getting the best products and service in the industry!
Expandable braided sleeves: all types at a glance
| Type | Description | Material | Properties | Temperature range | Dimensions |
|---|---|---|---|---|---|
| BIS GE ARAMID | ARAMID braided tubing | – | elastic, expandable, flame-retardant, flexible, high temperature resistance, self-extinguishing | -70 °C to +180 °C | Ø 2.0 – 150.0 mm |
| BIS GE CARBON | The BIS GE CARBON braided sleeve, made from high-quality carbon fibre yarns, offers exceptional strength, high temperature resistance and an extremely lightweight construction. This high-performance product adapts flexibly to irregular or asymmetrical surfaces whilst offering full radial stability and torsional strength. Its outstanding properties make this sleeve an indispensable component in modern high-tech applications. | carbon fiber | high temperature resistance | -269 °C to +650 °C | Ø 1.0 – 65.0 mm |
| BIS GE PA/CU EMV | Shielding braid BIS GE PA/CU EMC | PA 6.6 | elastic, expandable, flexible, mesh weave | -40 °C to +180 °C | Ø 4.0 – 16.0 mm |
| BIS GE PA/EMV | PA 6.6 expandable braided sleeve with silver coating | PA 6.6 | halogen-free, high temperature resistance | -40 °C to 160 °C | Ø 1.0 – 115.0 mm |
| BIS GE PET | Polyester expandable braided sleeve | PET | flame-retardant, halogen-free | -40 °C to 150 °C | Ø 2.0 – 69.0 mm |
| BIS GE PP | Polypropylene expandable braided sleeve | PP | halogen-free, self-extinguishing | -30 °C to 105 °C | Ø 1.5 – 58.0 mm |
| BIS GE PA | Polyamide 6.6 expandable braided tubing | PA 6.6 | halogen-free, high temperature resistance, self-extinguishing | -40 °C to 180 °C | Ø 1.5 – 115.0 mm |
| BIS WRAP PET | Self-closing PET braided sleeve | PET | for post-assembly application, halogen-free | -55 °C to 150 °C | Ø 3.0 – 50.0 mm |
| BIS GE CU | Our BIS GE CU tinned copper braided sleeving is highly abrasion resistant and perfect for shielding and grounding wire harnesses or for sleeving. | Tinned copper | abrasion resistant, high temperature resistance | -65 °C to +232 °C | Ø 1.59 – 57.15 mm |
Looking for a specific version?
Other dimensions, colours or custom designs – talk to us, we will be happy to advise you.
