Protective rubber sleeves – Additional Products
Rubber grommets · Polychloroprene rubber

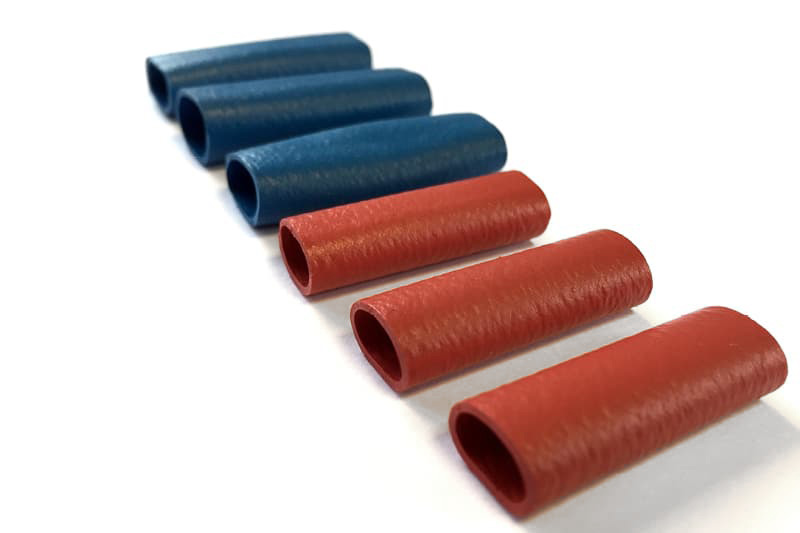

Polychloroprene rubber sleeves The quickest and easiest way to mount BIT protective rubber sleeves for a tight fit is to use a three-pronged expansion tool specifically designed for this purpose.
- Material
- Polychloroprene rubber
- Temperature range
- -30 °C to +90 °C
- Order unit
- Piece
- Available sizes
- 12
Non-binding inquiry · individual quote within 24 hours
Properties
- Expandable
- Elastic
- Flame-retardant
- Flexible
Typical applications
- Cable connection
- Cable fastening
- Repair & maintenance
- Pre-assembly
Technical specifications
- Material
- Polychloroprene rubber
- Properties
- elastic, expandable, flame-retardant, flexible
- Operating temperature min.
- -30 °C
- Operating temperature max.
- +90 °C
- Diameter inside from (mm)
- 1.25
- Diameter inside up to (mm)
- 17.00
- Colours
- Black, White, Red, Blue, Green, Yellow, Orange, Brown, Grey
Sizes according to datasheet
Abmessungen
| TYP | for cable sizes (mm) | inside diameter (mm) | length (mm) | Wall thickness (mm) |
|---|---|---|---|---|
| 1.25 x 20 | 1.25 - 2.00 | 1.25 | 20.00 | 0.50 |
| 1.75 x 20 | 1.75- 3.50 | 1.75 | 20.00 | 0.50 |
| 2.40 x 20 | 2.40- 4.50 | 2.40 | 20.00 | 0.60 |
| 2.50 x 20 | 2.50- 5.50 | 2.50 | 20.00 | 0.90 |
| 3.00 x 25 | 3.00- 6.00 | 3.00 | 25.00 | 0.60 |
| 4.00 x 30 | 4.00- 8.00 | 4.00 | 30.00 | 1.20 |
| 5.00 x 30 | 5.00- 9.00 | 5.00 | 30.00 | 0.70 |
| 7.50 x 30 | 7.50 — 12.00 | 7.50 | 30.00 | 0.80 |
| 10.00 x 35 | 10.00 — 15.00 | 10.00 | 35.00 | 0.90 |
| 12.00 x 50 | 12.00 — 20.00 | 12.00 | 50.00 | 1.20 |
| 14.00 x 50 | 14.00 - 23.00 | 14.00 | 50.00 | 1.30 |
| 17.00 x 50 | 17.00 — 28.00 | 17.00 | 50.00 | 1.30 |
