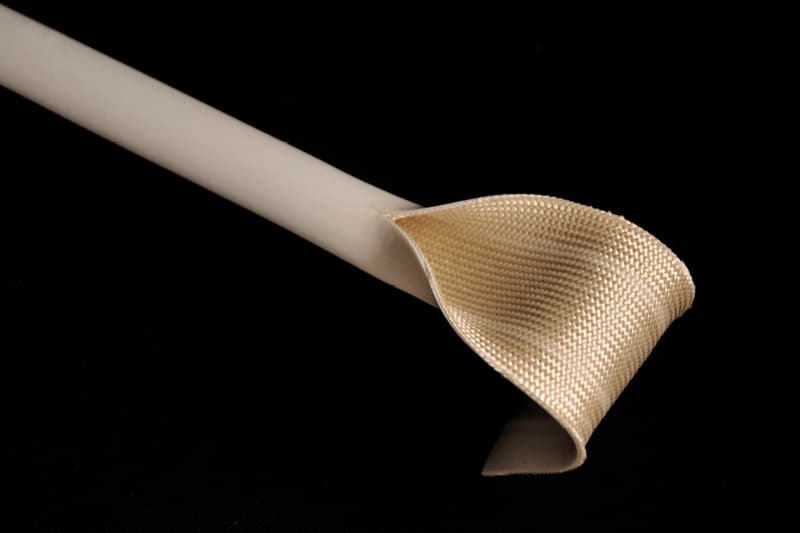

BIS 230 UL (B) is high-temperature resistant insulating sleeving made of fiberglass and coated with silicone rubber. Almost non-flammable to begin with, the silicone-rubber coating neither melts nor emits any toxic gases while burning.
| Technical Specifications | |
|---|---|
| Material | Fiberglass with silicone-rubber coating |
| Properties | highly flexible, self-extinguishing, UL-certified |
| Certification | UL 1441 |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 180 °C |
| Diameter inside from (mm) | 0,50 |
| Diameter inside up to (mm) | 33,00 |
| Colors | black white others upon request |
| Type | inside diameter | Wall thickness | PU (roll) |
|---|---|---|---|
| 0.50 | 0.50 +0.18 mm | 0.80 +0.20 mm | 200 m |
| 0.80 | 0.80 +0.17 mm | 0.80 +0.20 mm | 200 m |
| 1.00 | 1.00 +0.21 mm | 0.80 +0.20 mm | 200 m |
| 1.45 | 1.45 +0.25 mm | 0.80 +0.20 mm | 200 m |
| 2.00 | 2.00 +0.25 mm | 0.80 +0.20 mm | 200 m |
| 2.50 | 2.50 +0.29 mm | 0.80 +0.20 mm | 200 m |
| 2.90 | 2.90 +0.30 mm | 0.80 +0.20 mm | 200 m |
| 3.50 | 3.50 +0.30 mm | 0.80 +0.20 mm | 200 m |
| 4.00 | 4.00 +0.30 mm | 0.80 +0.20 mm | 200 m |
| 5.00 | 5.00 +0.50 mm | 0.80 +0.20 mm | 200 m |
| 6.00 | 6.00 +0.50 mm | 0.90 +0.20 mm | 200 m |
| 8.00 | 8.00 +0.60 mm | 0.90 +0.20 mm | 100 m |
| 10.00 | 10.00 +0.60 mm | 0.90 +0.20 mm | 100 m |
| 12.00 | 12.00 +0.60 mm | 0.90 +0.20 mm | 100 m |
| 12.70 | 12.70 +0.60 mm | 1.00 +0.20 mm | 100 m |
| 16.00 | 16.00 +0.70 mm | 1.00 +0.20 mm | 50 m |
| 20.00 | 20.00 +0.90 mm | 1.20 +0.30 mm | 25 m |
| 25.00 | 25.00 +0.90 mm | 1.20 +0.30 mm | 25 m |
