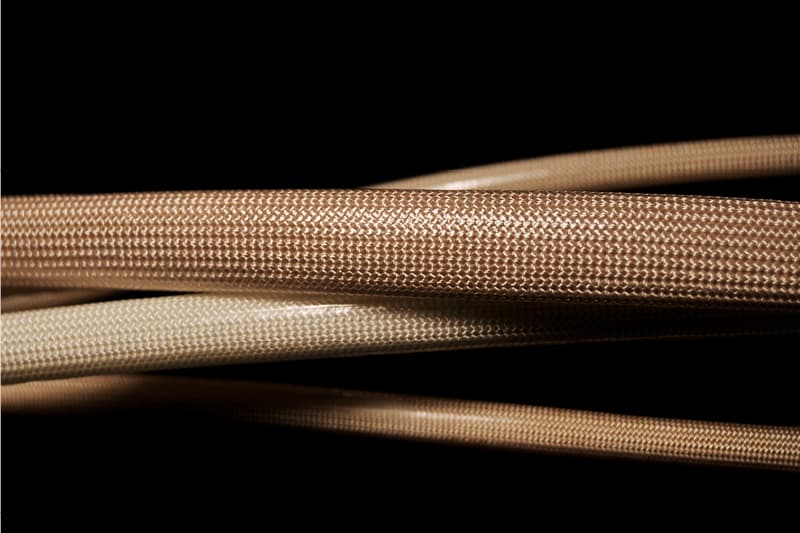

Glasseidenschlauch BIS 155 UL (B)

BIS 155 UL (B)

UL-approved fiberglass sleeve with polyurethane coating

BIS 155 UL (B) is temperature-resistant and very flexible fiberglass sleeving coated with acrylic polyurethane resin. It is certified according to UL 1441.



Product data sheet PDF
Technical Specifications
Material Fiberglass coated with acrylic polyurethane resin
Properties flexible, self-extinguishing, UL-certified
Certification UL 1441
Operating temperature min. -20 °C
Operating temperature max. 155 °C
Diameter inside from (mm) 0,50
Diameter inside up to (mm) 30,00
Colors
brown
Type inside diameter Wall thickness PU (roll)
0.5 0.5 +0.18 mm minimum 0.279 mm 200 m
0.8 0.8 +0.17 mm minimum 0.330 mm 200 m
1.0 1.0 +0.21 mm minimum 0.381 mm 200 m
1.5 1.5 +0.2 -0.05 mm minimum 0.381 mm 200 m
2.0 2.0 +0.25 mm minimum 0.381 mm 200 m
2.5 2.5 +0.29 mm minimum 0.457 mm 100 m
3.0 3.0 +0.2 -0.1 mm minimum 0.457 mm 100 m
3.5 3.5 +0.3 mm minimum 0.457 mm 100 m
4.0 4.0 +0.3 mm minimum 0.508 mm 100 m
4.5 4.5 +0.4 mm minimum 0.508 mm 100 m
5.0 5.0 +0.5 mm minimum 0.508 mm 100 m
6.0 6.0 +0.5 mm minimum 0.508 mm 100 m
7.0 7.0 +0.5 mm minimum 0.508 mm 100 m
8.0 8.0 +0.6 mm minimum 0.635 mm 100 m
9.0 9.0 +0.5 mm minimum 0.635 mm 100 m
10.0 10.0 +0.6 mm minimum 0.635 mm 100 m
12.0 12.0 +0.6 mm minimum 0.635 mm 100 m
14.0 14.0 +0.6 mm minimum 0.635 mm 100 m
16.0 16.0 +0.7 mm minimum 0.635 mm 50 m
18.0 18.0 +0.7 mm minimum 0.635 mm 50 m
20.0 20.0 +0.9 mm minimum 0.635 mm 50 m
21.0 21.0 +0.9 mm minimum 0.635 mm 25 m
22.0 22.0 +0.9 mm minimum 0.635 mm 25 m
23.0 23.0 +0.9 mm minimum 0.635 mm 25 m
24.0 24.0 +0.9 mm minimum 0.635 mm 25 m
25.0 25.0 +0.9 mm minimum 0.635 mm 25 m
26.0 26.0 +0.9 mm minimum 0.635 mm 25 m
28.0 28.0 +0.9 mm minimum 0.635 mm 25 m
30.0 30.0 +0.9 mm minimum 0.635 mm 25 m
