Wellrohr BIS WS DUO PP

BIS WS DUO PP

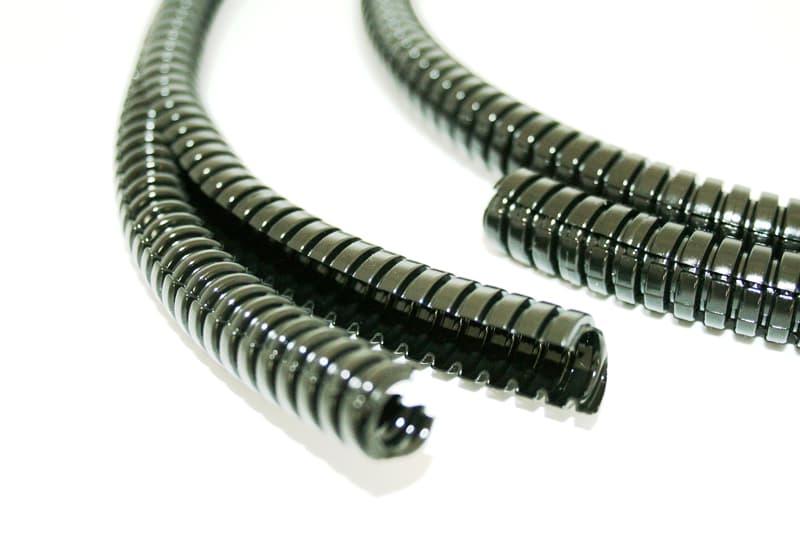

Two-piece dividable PP corrugated conduit pipe

Made of polypropylene, this type of two-piece corrugated conduit tubing is dividable. This makes BIS WS-DUO PP perfect for protecting already pre-assembled cables and harnesses.

Product data sheet PDF
Technical Specifications
Material modified PP
Properties all-purpose, for post-assembly application, halogen-free, temperature-resistant
Operating temperature min. -40 °C
Operating temperature max. 130 °C
Diameter inside from (mm) 6,2
Diameter inside up to (mm) 43,00
Colors
black
Type inside diameter outside diameter PU (roll)
8.5 6.20 +-0.40 mm 11.20 +-0.30 mm 50 m
10.0 7.90 +-0.40 mm 12.90 +-0.30 mm 50 m
12.0 10.30 +-0.30 mm 15.80 +-0.30 mm 50 m
17.0 13.90 +-0.30 mm 21.00 +-0.40 mm 50 m
23.0 20.50 +-0.40 mm 28.30 +-0.40 mm 50 m
29.0 26.60 +-0.40 mm 34.50 +-0.40 mm 25 m
36.0 32.00 +-1.00 mm 41.80 +-1.00 mm 25 m
48.0 43.00 +-1.00 mm 54.20 +-1.00 mm 25 m
