Glasseidenschlauch BIS ROH (D)

BIS ROH (D)

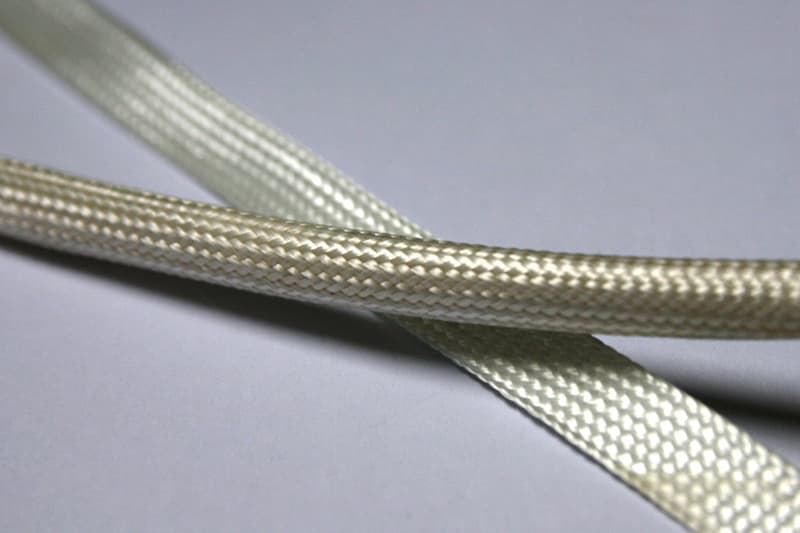

Heat-treated, uncoated virgin fiberglass sleeve

Braided from fiberglass filaments, BIS ROH sleeving is extremely temperature resistant.

Product data sheet PDF
Technical Specifications
Material Fiberglass filament
Properties fireproof, highly flexible, self-extinguishing
Operating temperature min. -70 °C
Operating temperature max. 550 °C
Diameter inside from (mm) 0,50
Diameter inside up to (mm) 25,00
Type inside diameter Wall thickness PU (roll)
0.5 0.5 mm 0.20 mm 400 m
0.8 0.8 mm 0.20 mm 400 m
1.0 1.0 mm 0.20 mm 300 m
1.5 1.5 mm 0.30 mm 300 m
2.0 2.0 mm 0.30 mm 300 m
2.5 2.5 mm 0.30 mm 300 m
3.0 3.0 mm 0.30 mm 200 m
3.5 3.5 mm 0.30 mm 200 m
4.0 4.0 mm 0.30 mm 200 m
5.0 5.0 mm 0.40 mm 200 m
6.0 6.0 mm 0.40 mm 100 m
7.0 7.0 mm 0.40 mm 100 m
8.0 8.0 mm 0.40 mm 100 m
9.0 9.0 mm 0.40 mm 100 m
10.0 10.0 mm 0.40 mm 100 m
12.0 12.0 mm 0.40 mm 100 m
14.0 14.0 mm 0.50 mm 100 m
16.0 16.0 mm 0.50 mm 100 m
18.0 18.0 mm 0.50 mm 100 m
20.0 20.0 mm 0.50 mm 50 m
22.0 22.0 mm 0.50 mm 50 m
25.0 25.0 mm 0.50 mm 50 m
